INNOVATIVE INSTALLATIONS
IW25-4 DEHUMIDIFIER
View a Printable PDF of current page

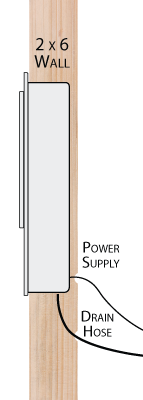

2 x 6 IN Wall Installation
Recesses In Wall
IW25-4 IN Wall Dehumidifier fits directly in between interior studs and 2 x 6 wall without any overlap. The dehumidification system measures 5.75” in depth for simplified installation and clean finish. Only one side of wall will need to be cut for the rough opening. Ideal for new construction and applications with 2 x 6 wall framing.
Rough Opening Dimensions:
28” x 14 1/2” x 5 3/4

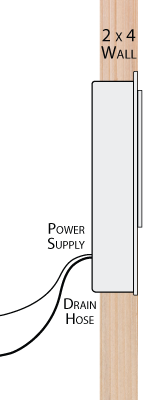

2 x 4 IN Wall Installation
Recessed Fits Through Wall
The IW25-4 IN Wall Dehumidifier recessed directly through wall; There are no additional accessories needed for installation. Ideal for new construction, renovations and existing properties when recessed installation is preferred.
Rough Opening Dimensions:
28” x 14 1/2” x 5 3/4

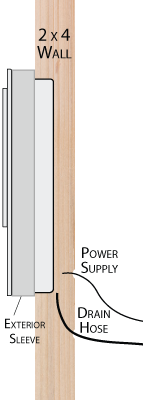

Semi-Recessed Exterior Sleeve
The IW25-4 IN Wall Dehumidifier can be semi-recessed into the front side of wall with Exterior Sleeve for a clean bump out finish. Only one side of the wall will be cut for rough opening. Ideal installation for 2 x 4 applications with limited space to recess unit.
Rough Opening Dimensions:
28” x 14 1/2” x 5 3/4

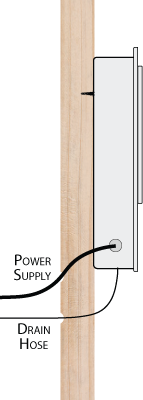

Direct ON Wall Mount Installation
Mounts ON Wall
IW25-4 ON Wall Dehumidifier hangs directly on wall. Depending on application, drain and electrical can be routed through alternate punch-out holes on frame of dehumidifier. No cuts needed to install the dehumidification unit directly on wall. Ideal for existing properties. Provides opportunities for creative installations such as cabinets, kitchen islands, and hard surface walls.
Innovative Installation Accessories

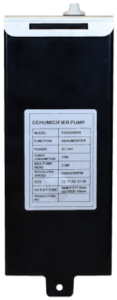

Integrated Condensate Pump Built for IW25-4
The Integrated Condensate Pump was designed for automatic collection and removal of condensate when gravity drainage is not possible or practical. The pump includes 10’ lift that can continuously flow downhill with gravity, or 15’ without downhill slope. Pump mounts directly into dehumidifier behind tamper-proof cover.
Internal Condensate Pump Dimensions:
7.125” x 3” x 2.75″

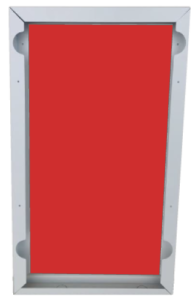

Exterior Sleeve
The Exterior Sleeve allows the IW25-4 IN Wall Dehumidifier to be semi-recessed into walls, closet, kitchen islands and other creative installations. The Exterior Sleeve includes punch-out holes on side and bottom for versatile drain hose and power routing. The Exterior Sleeve frames the dehumidifier for a
clean fit and clean aesthetic.
Exterior Sleeve Dimensions:
17.5” x 30.5” x 2.2″

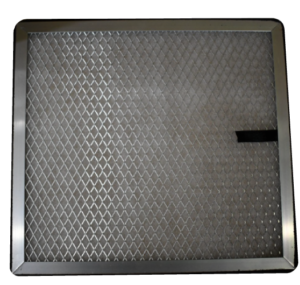

Washable MERV 8 Air Filter
The IW25-4 includes an easy to clean washable MERV 8 air filter. Easily access the MERV 8 Filter for cleaning by removing the front diffuser plate. Designed to capture large and small particles including mold spores and dust to help protect the dehumidifier coils from corrosive particles in order to promote product longevity.
Air Filter Dimensions:
IN Wall
11.375” x .25” x 8.31 “
On Wall
9.125” x .25” x 8.25
